JIS无缝管道

JIS无缝管的容差

表1:JIS G3441,G3444,G3445的外径耐受性
应用 Tolerance on Outside Diameter (mm)
JIS G3441.
JIS G3444.
JIS G3445.
=50 ±0.5
>50 ±1%
JIS G3441.
JIS G3444.
JIS G3445.
<50 ±0.25
>50 ±0.5%
JIS G3441.
JIS G3445.
<25 ±0.12
> 25-40. ±0.15
>40-50 ±0.18
>5:.60 ±0.20
> 60-70. ±0.23
> 70-80 ±0.25
> 80-90 ±0.30
> 90-100 ±0.40
> 100. ±0.5%
JIS G3441. <13 ±0.25
> 13-25 ±0.40
> 25-40. ±0.60
>40-65 ±0.80
>65-90 ±1.00
>90-140 ±1.20
> 140. By agreement
Table 2: Tolerance on Wall Thickness in JIS G3441, G3444, G3445
应用 墙壁厚度的耐受性(毫米)
JIS G3441.
JIS G3444.
JIS G3445.
<= 4. -0.5,+0.6
>4 -12.5%, +15%
JIS G3441.
JIS G3444.
JIS G3445.
<= 3 ±0 .3
>3 ±10%
JIS G3441.
JIS G3445.
<= 2 ±0.15
>2 ±8%
表3:JIS G3454中外径和壁厚的公差
应用 Tolerance on Outside Diameter 墙壁厚度的耐受性
尺寸 <40A ±0.5mm <= 4.毫米 + 0.6mm.
-0.5%
>50A, <125A ±1%
Hot Rolled
无缝管道
150A ±1.6mm >4mm +15%
-12.5%
> 200A ±0.8%
超过350毫米,
Tolerance is ±0.5%
Cold Drawn
无缝管道
and Electric
Resistant
Welded Pipes
<25A ±0.3mm. <= 3毫米 ±0.3mm.
> 32A ±0.8% > 3mm. ±10%
But more than 350mm, the
Tolerance is ±0.5%
表4:JIS G3455,G3456,G3458,G3460,G3460,G3460的外径和墙壁厚度的耐受性
应用 Tolerance on Outside Diameter 墙壁厚度的耐受性
Hot Rolled
无缝管道
<=50mm ±0.5mm <= 4.毫米 ±0.5mm
>50-160mm ±1%
> 160-200mm. ±1.6mm >4mm ±12.5%
> 200.毫米 ±0.8%
More that 350mm, the
Tolerance is ±0.5%
Cold Drawn
无缝管道
和电阻
Welded Pipes
<= 40.毫米 ±0.3mm. <= 2mm. ±0.2mm.
>40mm ±0.8% > 2mm. ±10%
More than 350 mm the
Tolerance is ±0.5%

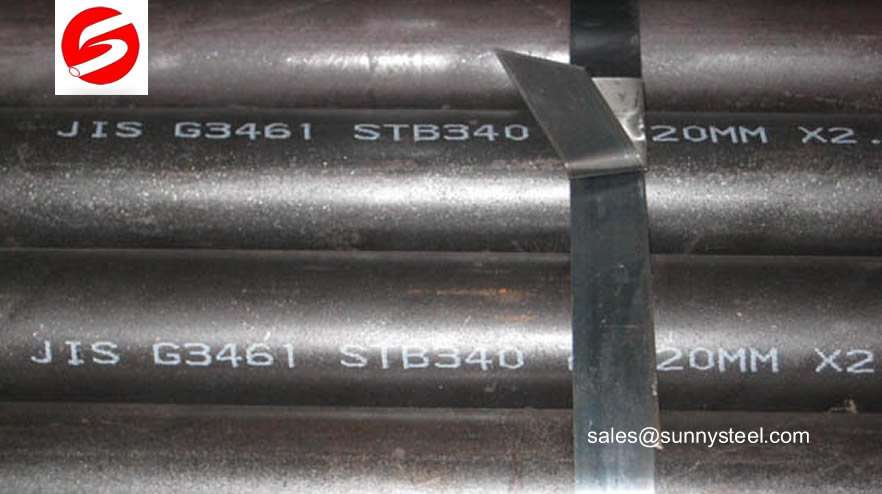

Table 5: Tolerance on Outside Diameter in JIS G3461, G3462, G3464
外部
直径
Tolerance on Outside Diameter
Hot Rolled
无缝的
管子
无缝的
管子
Through
Quench and
Normalized
Cold Drawn
无缝管道
throng, the Hot
治疗除外
Quench and
Normalized
电焊
管子Except
Cold Drawn
Cold Drawn
电焊
管子
毫米
<= 25. +0.4
-0.8
±0.25 ±0.10 ±0.15 ±0.10
> 25.40 ±0.25 ±0.15 ±0.20 ±0.15
>40-50 ±0.25 ±0.20 ±0.25 ±0.20
>50.60 ±0.25 ±0.25 ±0.30 ±0.25
>60-80 ±0.30 ±0.30 ±0.40 ±0.30
>80.100 ±0.40 ±0.40 -0.60,+0.40 ±0.40
> 100.-120 +0.4
-1.2
-0.60,+0.40 -0.60,+0.40 -0.80,+0.40 -0.60,+0.40
> 120-160 -0.80,+0.40 -0.80,+0.40 -1.00,+0.40 -0.80,+0.40
>160-200 -1.8,+0.4 -1.20,+0.40 -1.20,+0.40 -1.20,+0.40 -1.20,+0.40
> 200. -2.4,+0.4 -1.60,+0.40 -1.60,+0.40 -1.60,+0.40 -1.60,+0.40
表6:JIS G3461,G3462,G3464的墙壁厚度公差
Wall
厚度
(毫米)
Hot Rolled Seamless Pipe 冷却无缝管道 电焊Pipe
外部直径那毫米 外部直径那毫米 外部直径那毫米
<=100 > 100. <= 40. >40 <= 40. >40
(%)
<= 2 - - -0,+ 0.4mm +22
-0
-0,+ 0.3mm +18
0.
>2-2.4 -0,+40 - +20
-,0
+18
-0
>2.4-3.8 -0,+35 -0,+35
>3.8-4.6 -0,+23 -0,+33
>4.6 -0,+28 -0,+28
Table 7: Tolerance on the Length in JIS G3461, G3462, G3464
Item 宽容长度
OD <50mm. <7M. -0,+ 7mm
>=7m 每3米的长度增加,加耐公差增加3毫米,最大为15mm
OD>=50mm <7M. -0,+ 10mm
>=7m 每3米的长度增加,加耐公差增加3毫米,最大为15mm
OD: Outside Diameter
Table 8: Tolerance on Outside Diameter in JIS G3465
应用 Tolerance on Outside Diameter (mm)
Hot Rolled <=50 ±0.5
>50 ±1%
Cold Drawn <= 40. ±0.2
>40 ±0.5%

其他钢管JIS标准系列

JIS无缝管根据合金,不锈钢或碳。它测试了钢的性质,硬度,耐腐蚀性,蚀,热处理过程等。结果列于如下钢管的主要JIS钢材等级。

JIS G3439.

无缝钢油井,套管,管道和钻杆

Steel grade: STO-G, STO-H, STO-J, STO-N, STO-C, STO-D, STO-E

应用:无缝钢油井,外壳,管道和钻杆

JIS G3441.

Steel grade:SCr 420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK
应用:合金钢管的一般结构用途

JIS G3444.

Steel grade: STK 30, STK 41, STK 50, STK 51, STK 55
应用:一般结构用途的碳钢管
Dimension Range: 21.7-1016.0 mm

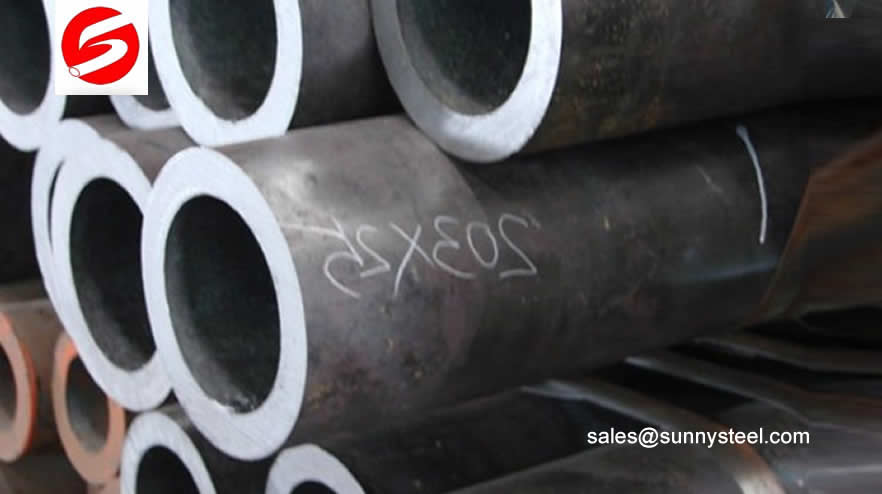

应用: Carbon Steel Tubes for Machine Structural Purposes

JIS G3455.

钢级:STS 38,STS 42,STS 49
应用: Carbon Steel Pipes for High Pressure Service
维度范围:10.5-660.4 mm

JIS G3456.
钢级:Stpt 38,Stpt 42,Stpt 49
应用:高温服务的碳钢管
Dimension Range:10.5-660.4 mm
JIS G3460

Steel grade:STPL 39, STPL 46, STPL 70
应用:低温服务的钢管
Dimension Range:10.5-660.4 mm

JIS G3464.

钢级:STBL 39,STBL46,STBL 70
应用: Steel Heat Exchanger Tubes for Low Temperature Service
Dimension Range: 15.9-139.8 mm

JIS G3465.

Steel grade: STM-055, STM-C65, STM-R60, STM-1170, STM-1180, STM-R85
应用: Seamless Steel Tubes for Drilling
尺寸范围:套管:43-142mm /空心管:34-180mm /钻孔:33.5-50mm

JIS G3467.

Steel grade: STF 42, STFAl2, STFA22, STFA23, 5TFA24, STFA23, STFA26
应用:燃烧加热器的钢管
Dimension Range:60.5-267.4mm

测量尺寸和测试
  • JIS seamless pipe testing covers many specifications, including alloy, size, toughness and composition.
  • 使用钢制产品的人购买符合他们所需要的所需要求的产品。
  • How To Measure Hardness Of Steel Pipe
Packing:
  • Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as requested.
  • Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.
Delivery:

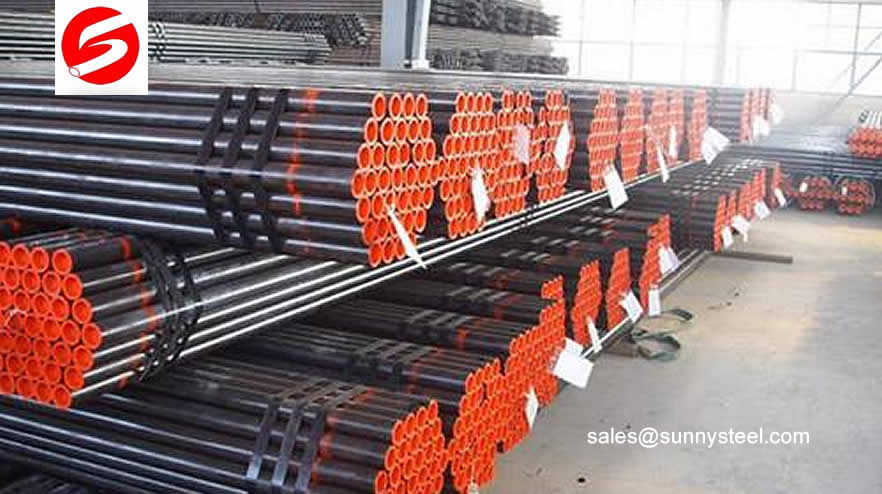

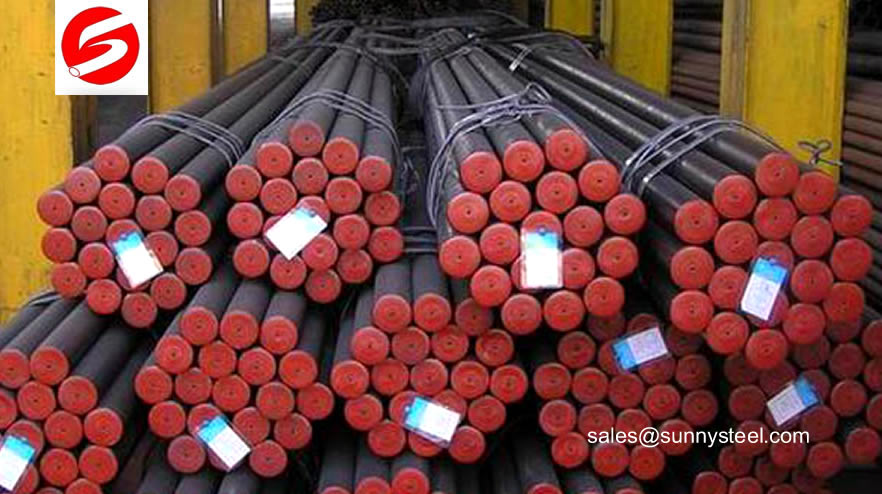

  • 管子以六边形捆绑或圆形捆绑包装在钢带中供应。
  • 捆绑重量 - 应根据客户要求提供5000千克。
  • Each bundle is furnished with three tags.

警告:包含(general_seamless-pipes-by-statquest.php):无法打开流:没有这样的文件或目录/www/wwwroot/www.frzlu.com/jis-seamless-pipe.php在线的642.

警告: include(): Failed opening 'general_Seamless-pipes-by-Standards.php' for inclusion (include_path='.:') in/www/wwwroot/www.frzlu.com/jis-seamless-pipe.php在线的642.
JIS编号和CORRENSPONDING外国标准
JIS ASTM BS. din NF ISO Index Number
标准Number Grade 亭子 标准Number Grade 亭子 标准Number Grade 亭子 标准Number Grade 亭子 标准Number Grade 亭子 标准Number Grade 亭子
G3456. STPT370
(STPT38)

C A106 格拉 C 3602 HFS360 C 17175. St35.8 C A49-211 TU37B. C 2604/2 TS5 C C0.0.4
CFS360 C 17177. ST37.8. C A49-213 TU37C C 2604/3 TW9H. C
ERW360 C A49-243 TU37C C
CEW360 C
STPT410
(STPT42)

C A106 GRB. C 3602 HFS410 C 17175. St45.8 C A49-211 TU42b C 2604/2 TS9H C
CFS410 C 17177. St42.8 C A49-213 TU42c C
ERW410 C A49-243 TU42c C
CEEW410 C
STPT480
(STPT42)
C A106 GRC. C 3602 HFS460 C A49-211 TU48B. C 2604/2 TS14 C
CFS460 C A49-213 TU48C C
ERW460 C
CEEW460 C

无缝的pipeSpecification, standard and identification

无缝管广泛应用于核设备,天然气,石化,船舶建筑和锅炉行业。无缝管在中国锅炉行业中占据65%的市场份额。
