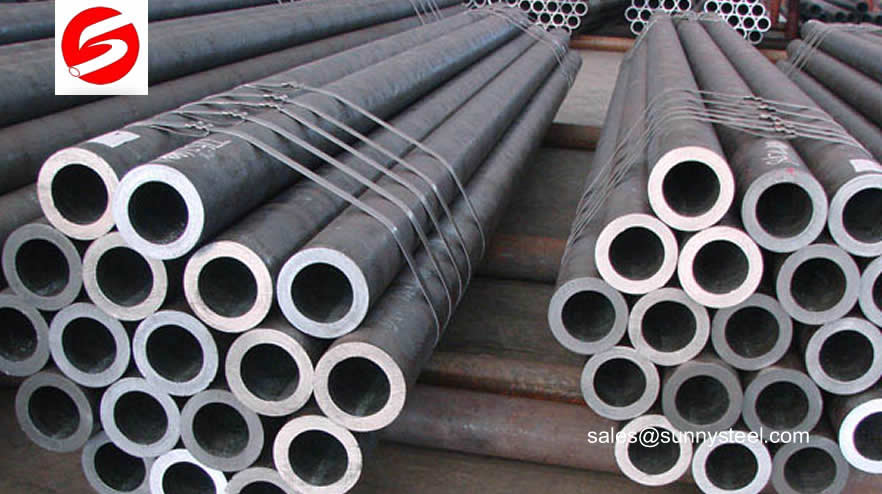

JIS G3445 is Japanese Industrial Standard specifies the carbon steel tubes, hereinafter referred to as the "tubes", used for machinery, automobiles, bicycles, furniture, appliances and other machine parts.
Standards: JIS G3445
Size (mm):
Application: Tubes used for machinery, automobiles, bicycles, furniture, appliances and other machine parts.
The main products of steel / steel grade:
Packing:Bare/bundles/crates/crate protection at the both sides of tubes or as per customers' requirements .
Painting: as requested.
研究生e | C | Si | Mn | P | S |
圣KM11A | ≤0.12 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
圣KM12A | ≤0.20 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
圣KM12B | ≤0.20 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
圣KM12C | ≤0.20 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
圣KM13A | ≤0.25 | ≤0.35 | 0.30-0.90 | ≤0.040 | ≤0.040 |
圣KM13B | ≤0.25 | ≤0.35 | 0.30-0.90 | ≤0.040 | ≤0.040 |
圣KM13C | ≤0.25 | ≤0.35 | 0.30-0.90 | ≤0.040 | ≤0.040 |
圣KM14A | ≤0.30 | ≤0.35 | 0.30-1.00 | ≤0.040 | ≤0.040 |
圣KM14B | ≤0.30 | ≤0.35 | 0.30-1.00 | ≤0.040 | ≤0.040 |
圣KM14C | ≤0.30 | ≤0.35 | 0.30-1.00 | ≤0.040 | ≤0.040 |
Appearance
研究生e | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
圣KM11A | \ | ≥290 | ≥35 |
圣KM12A | ≥175 | ≥340 | ≥35 |
圣KM12B | ≥275 | ≥390 | ≥25 |
圣KM12C | ≥355 | ≥470 | ≥20 |
圣KM13A | ≥215 | ≥370 | ≥30 |
圣KM13B | ≥305 | ≥440 | ≥20 |
圣KM13C | ≥380 | ≥510 | ≥15 |
圣KM14A | ≥245 | ≥410 | ≥25 |
圣KM14B | ≥355 | ≥500 | ≥15 |
圣KM14C | ≥410 | ≥550 | ≥15 |
The tubes shall be manufactured by seamless process, electric resistance welding process, or butt welding process, and those of other grades shall be manufactured by seamless process or electric resistance welding process. The tube shall be as manufactured or as cold-finished condition, or they shall be subjected to appropriate heat treatment.
The grade and designation of the tube shall be as given as follows table.
研究生e | Designation | |
---|---|---|
研究生e 11 | A | 圣KM 11A |
研究生e 12 | A | 圣KM 12A |
B | 圣KM 12B | |
C | 圣KM 12C | |
研究生e 13 | A | 圣KM 13A |
B | 圣KM 13B | |
C | 圣KM 13C | |
研究生e 14 | A | 圣KM 14A |
B | 圣KM 14B | |
C | 圣KM 14C | |
研究生e 15 | A | 圣KM 15A |
C | 圣KM 15C | |
研究生e 16 | A | 圣KM 16A |
C | 圣KM 16C | |
研究生e 17 | A | 圣KM 17A |
C | 圣KM 17C | |
研究生e 18 | A | 圣KM 18A |
B | 圣KM 18B | |
C | 圣KM 18C | |
研究生e 19 | A | 圣KM 19A |
C | 圣KM 19C | |
研究生e 20 | A | 圣KM 20A |
The sub classification letter symbols A, B and C are used to indicate distinction of method of manufacturing the tube, cold working process, heat treatment, etc.
NUBER | GRADE | NUBER | GRADE | NUBER | GRADE | NUBER | GRADE | |
---|---|---|---|---|---|---|---|---|
D 3517 | 研究生e 11 A | 圣KM 11 A | A513 | MT1010 | G-3445 | 圣KM11A | – | – |
A519 | MT1010 | |||||||
研究生e 12A | 圣KM 12 A | A513 | MT1015 | 圣KM12A | 980 | CDS-3 | ||
A519 | MT1015 | |||||||
研究生e 12 B | 圣KM 12 B | – | – | 圣KM12B | – | – | ||
研究生e 12C | 圣KM 12C | A512 | MT1015 | 圣KM12C | – | – | ||
A513 | ||||||||
研究生e 13 A | 圣KM 13 A | A512 | MT 1025 | 圣KM13A | – | – | ||
A513 | MTX1025 | |||||||
A519 | MT 1025 | |||||||
研究生e13B | 圣KM 13 B | – | – | 圣KM13B | 980 | CDS-4 | ||
研究生e13 C | 圣KM 13 C | – | – | 圣KM13C | – | – | ||
研究生e14 A | 圣KM 14 A | A513 | MT1030 | 圣KM14A | 1717 | CDS-103 | ||
A519 | MT1030 | |||||||
研究生e14 B | 圣KM 14 B | – | – | 圣KM14B | – | – | ||
研究生e14 C | 圣KM 14 C | – | – | 圣KM14C | – | – | ||
研究生e15 A | 圣KM 15 A | A513 | MT1033 | 圣KM15A | 1717 | CDS-105 | ||
研究生e15 C | 圣KM 15 C | – | – | 圣KM15C | – | – | ||
研究生e16 A | 圣KM 16 A | A519 | MT1040 | 圣KM16A | 980 | CDS-5 | ||
研究生e16 C | 圣KM 16 C | – | – | 圣KM16C | – | – | ||
研究生e17 A | 圣KM 17 A | A519 | MT1050 | STKM17A | 980 | CDS-7 | ||
1717 | CDS-107 | |||||||
研究生e17 C | 圣KM 17 C | – | – | 圣KM17B | – | – | ||
研究生e18 A | 圣KM 18 A | A519 | MT1524 | 圣KM18A | 980 | CDS-9 | ||
研究生e18 B | 圣KM 18 B | – | – | 圣KM18B | – | – | ||
研究生e18 C | 圣KM 18 C | – | – | 圣KM18C | – | – | ||
研究生e19 A | 圣KM 19 A | – | – | – | – | – | ||
研究生e19 C | 圣KM 19 C | – | – | – | – | – | ||
研究生e20 A | 圣KM 20 A | – | – | – | – | – |
The tubes shall be practically straight. and the two ends shall be at right angles to the axis of the tube. The tubes shall be free from defects detrimental to practical use.
Division | Tolerances on outside diameter |
---|---|
No. 1 | Under 50mm ±0.5mm |
50mm or over ±1% | |
No. 2 | Under 50mm ±0.25mm |
50mm or over ±0.5% | |
No. 3 | Under 25mm ±0.12mm |
25mm or over to and excl. 40mm ±0.15mm | |
40mm or over to and excl. 50mm ±0.18mm | |
50mm or over to and excl. 60mm ±0.20mm | |
60mm or over to and excl. 70mm ±0.23mm | |
70mm or over to and excl. 80mm ±0.25mm | |
80mm or over to and excl. 90mm ±0.30mm | |
90mm or over to and excl.100mm ±0.40mm | |
100mm or over ±0.50% |
Division | Tolerances on wall thickness |
---|---|
No. 1 | Under 4mm |
+0.6mm | |
-0.5mm | |
4mm or over | |
15% | |
-12.50% | |
No. 2 | Under 3mm |
±0.3mm | |
3mm or over |
Protection and Packing:
Packed in wooden box or bundles protected with plastic paper, and suitably protected for sea-worthily delivery or as requested.
The tubes shall be delivered with a temporary corrosion protection. The type of protection shall be at the discretion of the manufacturer.
