With the support of our experienced professionals, our enterprise has established in this domain as a reputed manufacturer, exporter and supplier of Ceramic Lined Bends.
| Item | Index |
| Content of Alumina | ≥89% |
| Density | ≥3.5 g/cm3 |
| Rockwell Hardness | ≥80 HRA |
| Impact Strength | ≥850 Mpa |
| Bending Strength | ≥290MPa |
| Breaking Temper | ≥4.8MPa·m1/2 |
| Coefficient of Linear Thermal Expansion | 20W/m.K |
Ceramic lined bends withlap-joint flanges
Ceramic lined bends with flange 90degree
90 degree ceramic lined bend Export to Pilipinas

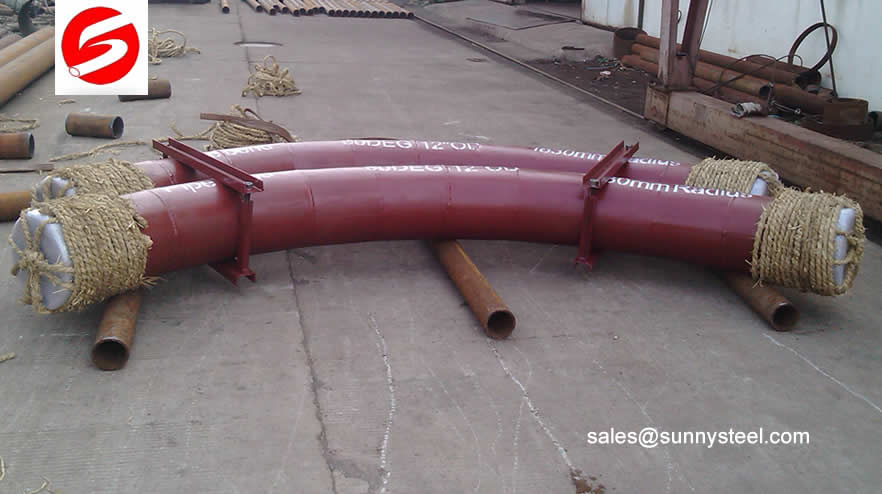

Pack ceramic lined bend by steel angle
An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (SW) or socketed welding(SW) etc.
Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.
Elbows are categorized based on various design features as below:
Materials
SHS-self-propagating ceramic composite steel pipe and fittings, the new generation of wearable and corrosion resistant engineering pipeline, belongs to "863" Hi-tech Plan products.It is the ideal wearable and corrosion resistant engineering pipeline, with wear resistance 15 times higher than common steel pipe, smooth inner surface, and favorable liquor resistance.
Application of pipe elbows:
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.
ELL & ELLS
SunnySteel's Ceramic Lined Bends and avoids product attrition.It reduces considerabley degradation of conveyed material and avoids formation of angel hair through its patented deflection chamber.
Tubes and bends in pneumatic conveying lines are suffering more or less abrasion. SunnySteel's ceramic lined pipes resists abrasion and avoids product attrition.It reduces considerabley degradation of conveyed material and avoids formation of angel hair through its patented deflection chamber.The compact design reduces cost of pipe support and installation. It is automatically self-purging with little pressure drop.
The offered bends are manufactured and coated by top class ceramic with the aid of pioneering techniques at our hi-tech production. These ceramic lined bends are commonly used in industrial pipeline fitting for changing the pipe direction. Moreover, we are providing these Ceramic Lined Bends at industry leading prices.
Application range
1, coal pulverizing system of power plant pipeline, including, powder transmission pipeline, thick powder separator pipeline, coal drop pipe, combustion system of a wind pipe, a secondary air pipe, three pipeline and burner pipelines, in addition to ash slagging system the discharge pipe, powder pipe, dry ash conveying pipe;
2, iron and steel plant raw material conveying pipeline, collecting pipe, dust pipe, ash pipe, ash pipe, mixing pipe, grinding export pipeline, coal pipeline, coal pipeline, separator pipe, burner radius pipe, etc.;
3、水泥工厂选择机器出口管,曹ose machine inlet pipe, pipe dust pipe, vertical mill outlet pipe, circulating air duct, high temperature air blower, lower material pipe, etc.;
4, petroleum, chemical, mining, coal, coal washing plant, smelting, paper, aluminum, building materials, powder engineering, food machinery and other processing and conveying material pipe.
Concrete case
Application of metallurgy, electric power industry
The electric power industry, metallurgy, mud, ash conveying of pulverized coal, lime gypsum slurry and consumes an amount of metal pipeline. The use of ceramic composite pipe to replace other pipelines, with high wear resistance, long life, easy installation, significant economic benefits.
Application of mine and coal industry
(1) mines: mine filling, concentrate and tailings delivery pipe wear serious, formerly in the slag conveying pipeline such as Panzhihua, Daye Mine the useful life of less than a year, the line can make life can be improved by more than 5 times.
(2) coal: Coal Preparation and long distance pipeline commonly used wet conveying, conveying pipe both wear resistance and corrosion resistance, using the tube can be as long conveying pipe, economic benefits is considerable.
Conveying highly abrasive materials, steel piping systems are under constant attack often over long distances.
Because the outer surface behaves like mild steel, the product can be cut and welded with proper procedure in the field, configured into a variety of fittings, and can accept the standard end options of flanges, weld rings and couplings.
Warranty
We are Quality Department tests and ensures all of our products are 100% inspected unreported. To an offer we customers additional corps of mind, all our products carry a 24-month warranty against defects or faulty workmanship.We fluid-flow products such as pipe and fittings, chokes, orifice plates, etc, carry a warranty against, erosion, defects, and/or faulty workmanship.
The warranty is determined to each creator and the maximum duration maximally in service. Should any of the RS fail within the warranty period, We'll replace or repair the defective product (s) at No. end user. Please contact the Sunny steel for details on the How to obtain a warranty for our products.
Inspections
As part of our quality regimen, 100% of incoming raw materials, semi-finished products, as well as finished products are thoroughly inspected prior to being entered into our inventory. We have established multiple hold points throughout fabrication as well as a comprehensive final inspection for all products.
Our team is highly trained and experienced in servicing and producing all types of steel supplies.
