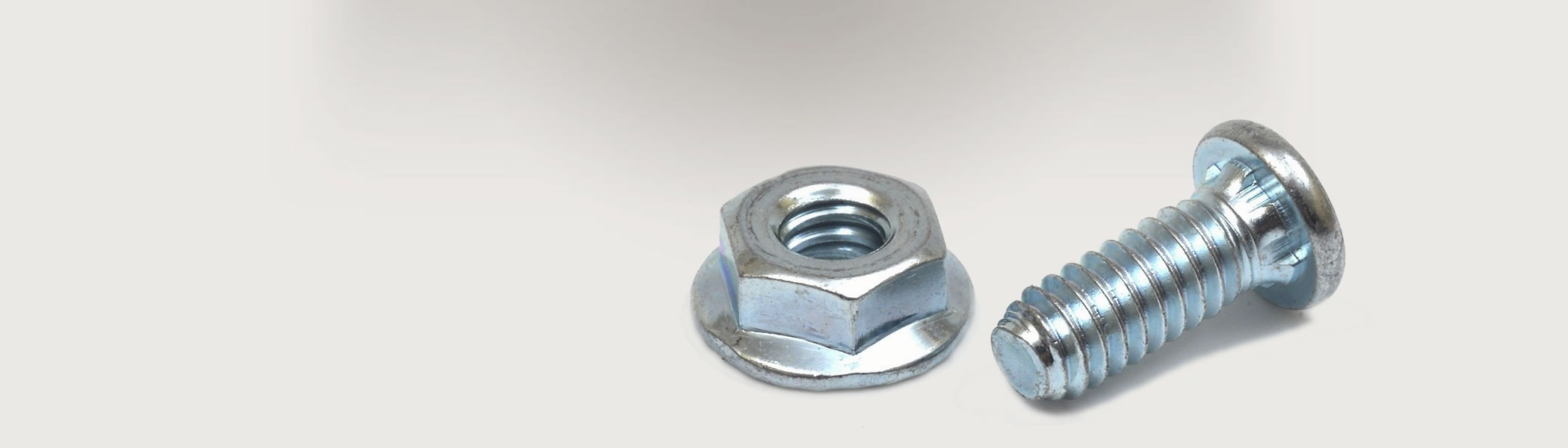

A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer.
We have a team of experienced professionals with years of experience in manufacturing.
We are manufacturer of Flange bolts & Nuts and supply high quality
ASTM A453 Grade 660 is a material specification for studs, bolts, nuts and other fasteners, intended for use in high temperature bolting applications.
ASTM A453 Grade 660 is classified into 4 property class namely A, B, C & D, each designated with different tensile and stress rupture properties. Grade 660 fasteners are used in bolting boilers, pressure vessels, pipeline flanges and valves, intended for high temperature service. ASTM A453 grade 660 material is chemically equivalent to ASTM B638 grade 660 stainless steel alloy, also known by alloy A286 and UNS S66286, heat treated to achieve properties defined in ASTM A453 specification.
Find more information on chemical composition, mechanical properties, tensile class, heat treatment definition, available products, bar stock sizes, applicable dimension standards, etc.
Grade | Class | Tensile Strength, min | Yield Strength, min | Elongation % | ||
---|---|---|---|---|---|---|
ksi | Mpa | ksi | Mpa | |||
660 | A, B, and C | 130 | 895 | 85 | 585 | 15 |
D | 130 | 895 | 105 | 725 | 15 | |
651 | A | 100 | 690 | 70 A | 485 | 18 |
60B | 415 | |||||
B | 95 | 655 | 60A | 415 | 18 | |
50B | 345 | |||||
662 | A | 130 | 895 | 85 | 585 | 15 |
B | 125 | 860 | 80 | 550 | 15 | |
665 | A | 170 | 1170 | 120 | 830 | 12 |
B | 155 | 1070 | 120 | 830 | 12 | |
668 | A and B | 130 | 895 | 85 | 585 | 15 |
ELEMENT | Grade 660 | Grade 651 | Grade 662 | Grade 665 | Grade 668 |
---|---|---|---|---|---|
% | % | % | % | % | |
Carbon | 0.08 max | 0.28-0.35 | 0.08 max | 0.08 max | 0.08 max |
Manganese | 2.00马克思 | 0.75-1.5 | 0.40-1.00 | 1.25-2.00 | 2.00马克思 |
Phosphorus, max | 0.040 max | 0.040 max | 0.040 max | 0.040 max | 0.040 max |
Sulfur, max | 0.030 max | 0.030 max | 0.030 max | 0.030 max | 0.030 max |
Silicon | 1.00 max | 0.30-0.80 | 0.40-1.00 | 0.1-0.80 | 1.00 max |
Nickel | 24.0-27.0 | 8.0-11.0 | 24.0-28.0 | 24.0-28.0 | 17.5-21.5 |
Chromium | 13.5-16.0 | 18.0-21.0 | 12.0-15.0 | 12.0-15.0 | 13.5-16.0 |
Molybdenum | 1.00-1.50 | 1.00-1.75 | 2.0-3.50 | 1.25-2.25 | 1.50 max |
Tungsten | ... | 1.00-1.75 | ... | ... | ... |
Titanium | 1.9-2.35 | 0.1-0.35 | 1.80-2.10 | 2.70-3.30 | 2.20-2.80 |
Columbium * | ... | 0.25-0.6 | ... | ... | ... |
铝 | 0.35 max | 0.35 max | 0.25 max | 0.50 max | |
Vanadium | 0.10-0.50 | ... | ... | 0.50 max | |
Boron | 0.001 - -0.010 | 0.001 - -0.010 | 0.01-0.07 | 0.001 - -0.010 | |
Copper | 0.50 max | 0.50 max | 0.25 max | ... |
Size | Class | Tensile, Mpa | Yield, Mpa | Elong. %, min | RA %, min |
Grade 660 | A, B , & C | 895 min | 585 min | 15 | 18 |
D | 895 min | 725 min | 15 | 18 | |
Grade 651 | A | 690 min | 485 min | 18 | 35 |
415 min | |||||
B | 655 min | 415 min | 18 | 35 | |
345 min | |||||
Grade 662 | A | 895 min | 585 min | 15 | 18 |
B | 860 min | 550 min | 15 | 18 | |
Grade 665 | A | 1170 min | 830 min | 12 | 15 |
B | 1070 min | 830 min | 12 | 15 | |
Grade 665 | A & B | 895 min | 858 min | 15 | 18 |
Grade | Class | Solutiona Treatment | Hardening Treatment |
660 | A | 1650 +/- 25 °F [900 +/-14 °C], hold 2 h, min and liquid quench | 1325 +/- 25 °F [720 +/- 14 °C] 16h, air cool |
B | 1800 +/- 25 °F [980 +/-14 °C], hold 1 h, min and liquid quench | 1325 +/- 25 °F [720 +/- 14 °C] 16h, air cool | |
C | 1800 +/- 25 °F [980 +/-14 °C], hold 1 h, min and oil quench | 1425 +/- 25 °F [775 +/- 14 °C] hold 16h, air cool followed by 1200 +/- 25 °F [650 +/- 14 °C], hold 16h, air cool | |
D | 1650 +/- 25 °F [900 +/-14 °C], hold 2 h, min and liquid quench OR | 1325 +/- 25 °F [720 +/- 14 °C] hold 16h, air cool followed by 1200 +/- 25 °F [650 +/- 14 °C], hold 16h, air cool if neccessary to achieve properties, second age : 1200 +/- 25 °F [650 +/- 14 °C] hold 16h, air cool |
|
1800 +/- 25 °F [980 +/-14 °C], hold 1 h, min and liquid quench | |||
651 | A | hot-cold worked at 1200 °F[650] min with 15% min reduction in cross sectional area, stress-relief anneal at 1200 °F [650 °C] min or 4h, min | |
B | hot-cold worked at 1200 °F[650] min with 15% min reduction in cross sectional area, stress-relief anneal at 1350 °F [730 °C] min or 4h, min | ||
662 | A | 1800 +/- 25 °F [980 +/-14 °C], hold 1 h, min and liquid quench | 1350 to 1400 °F [730 to 760 °C], hold 20h, furnace cool to 1200 +/- 25 °F [650 +/- 14 °C], hold 20h, air cool |
B | 1950 +/- 25 °F [1065 +/-14 °C], hold 2 h, min and liquid quench | 1350 to 1400 °F [730 to 760 °C], hold 20h, furnace cool to 1200 +/- 25 °F [650 +/- 14 °C], hold 20h, air cool | |
665 | A | 1800 +/- 25 °F [980 +/-14 °C], hold 3 h, min and liquid quench | 1350 to 1400 °F [730 to 760 °C], hold 20h, furnace cool to 1200 +/- 25 °F [650 +/- 14 °C], hold 20h, air cool |
B | 2000 +/- 25 °F [1095 +/-14 °C], hold 3 h, min and liquid quench | 1350 to 1400 °F [730 to 760 °C], hold 20h, furnace cool to 1200 +/- 25 °F [650 +/- 14 °C], hold 20h, air cool | |
668 | A | 1650 +/- 25 °F [900 +/-14 °C], hold 2 h, min and liquid quench | 1325 +/- 25 °F [720 +/- 14 °C] 16h, air cool |
B | 1800 +/- 25 °F [980 +/-14 °C], hold 1 h, min and liquid quench | 1325 +/- 25 °F [720 +/- 14 °C] 16h, air cool |
Grade | Class | Test Temperature | Stress, Min | Time to Rupture | Elongation | |
---|---|---|---|---|---|---|
Deg F [ Deg C ] | Ksi | Mpa | Min, h* | Min % | ||
660 | A, B & C | 1200 [650] | 56 | 385 | 100 | 5 |
651 | A & B | 1200 [650] | 40 | 275 | 100 | 5 |
662 | A & B | 1200 [650] | 55 | 380 | 100 | 5 |
665 | A | 1200 [650] | 75 | 515 | 100 | 3 |
B | 1200 [650] | 70 | 485 | 100 | 5 |
