ASTM A53 Gr.B Pipes

ASTM A53 pipe (also referred to as ASME SA53 pipe) is intended for mechanical and pressure applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

ASTM A53 Gr.B Pipes

The weld seam is heat treated after welding without untempered martensite remains. Also, the weld flash can be removed from both inner and outer surfaces.

适用于焊接,适合forming operations involving coiling, bending, and flanging, subject to certain qualifications.

Grade and Chemical Composition (%)
Grade C ≤ M ≤ P ≤ S ≤ Cu ≥ Ni ≤ Cr ≤ Mo ≤ V ≤
A 0.25 0.95 0.05 0.045 0.40 0.40 0.40 0.15 0.08
B 0.30 1.20 0.05 0.045 0.40 0.40 0.40 0.15 0.08
Mechanical Properties
Grade Rm Mpa Tensile Strength Mpa Yield Point Elongation Delivery Condition
A ≥330 ≥205 20 Annealed
B ≥415 ≥240 20 Annealed
Dimension Tolerances
Pipe Type

Pipe Sizes

Tolerances

Cold Drawn

OD ≤48.3mm ±0.40mm
WT ≥60.3mm ±1%mm
Materials and Manufacture

The steel for both seamless and welded pipe shall be made by one or more of the following processes: open-hearth, electric furnace, or basic-oxygen. The weld seam of electric-resistance welded pipe in Grade B shall be heat treated after welding.
Applications: heat exchangers, condensers, heat transfer equipment and similar pipes.

Note:

ASTM A53/A53M Structural Steel Pipe

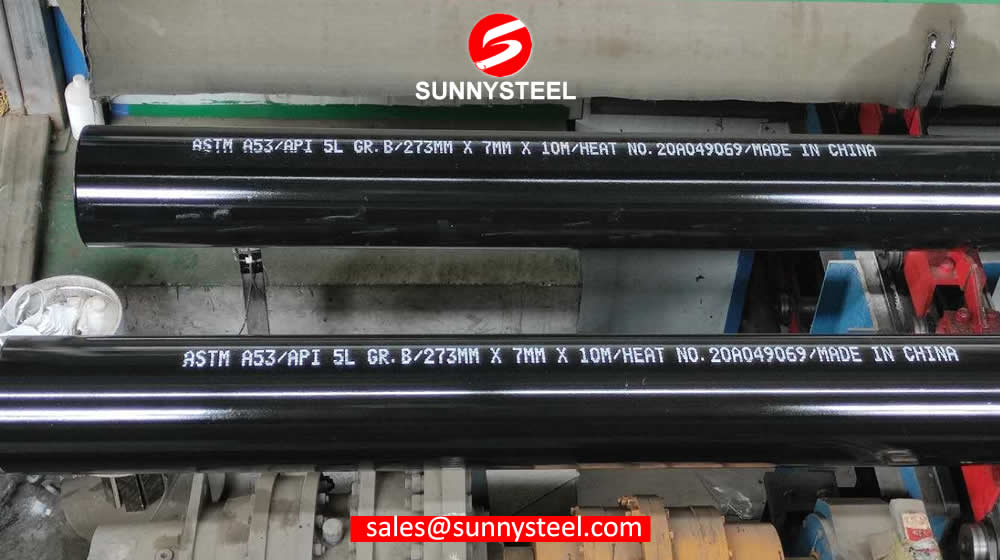

ASTM A53 GR.B/API 5L GR.B ERW 273*7*10

Keywords:black steel pipe, seamless steel pipe, steel pipe, welded steel pipe, zinc coated steel pipe, Black steel pipe–specifications, Seamless steel pipe–specifications, Welded steel pipe–specifications, Zinc-coated steel pipe–specifications

Packing: plastic pipe cap, plastic bag and steel strips bundled

Applications: petroleum, chemical, power, gas, metallurgy, shipbuilding, construction and more

354manbetx specification, Standard and identification

Welded steel pipe (steel pipe manufactured with a weld) is a tubular product made out of flat plates, known as skelp, that are formed, bent and prepared for welding.
