ASTM A213 T91 ASTM A213标准Sp的一部分ecification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, Heat-Exchanger Tubes.
ASTM A213 T91 Standard covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.
We are one of the leading Manufacturers, Supplier and Exporters of high quality ASTM A213 T91 Alloy Steel Seamless Tube. These tubes are widely used in various application industry such as Oil & Gas, Power, Fertilizers, Heat-Exchangers, Paper & Pulp, pharmaceuticals, Chemicals, Water Treatment, Dairy etc.

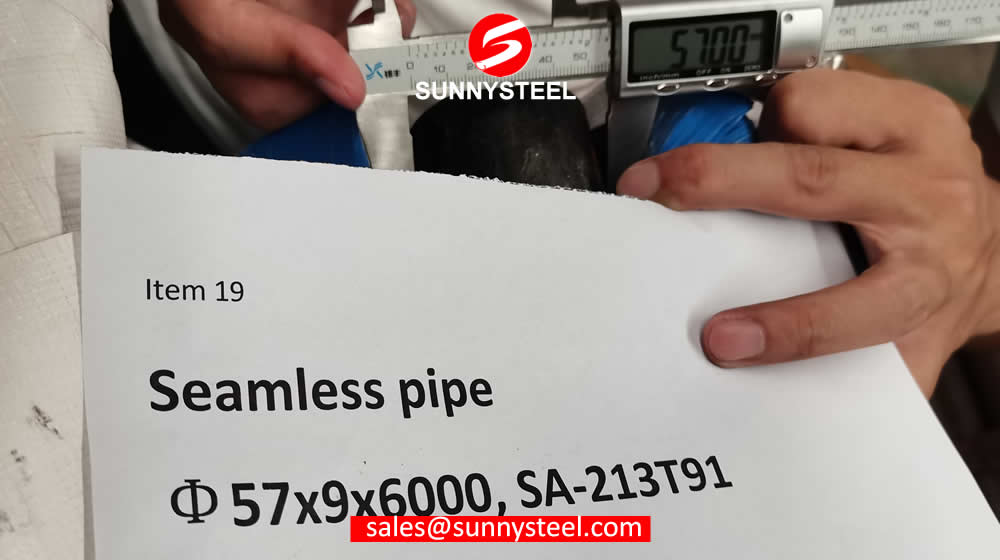

Out diameter measurement

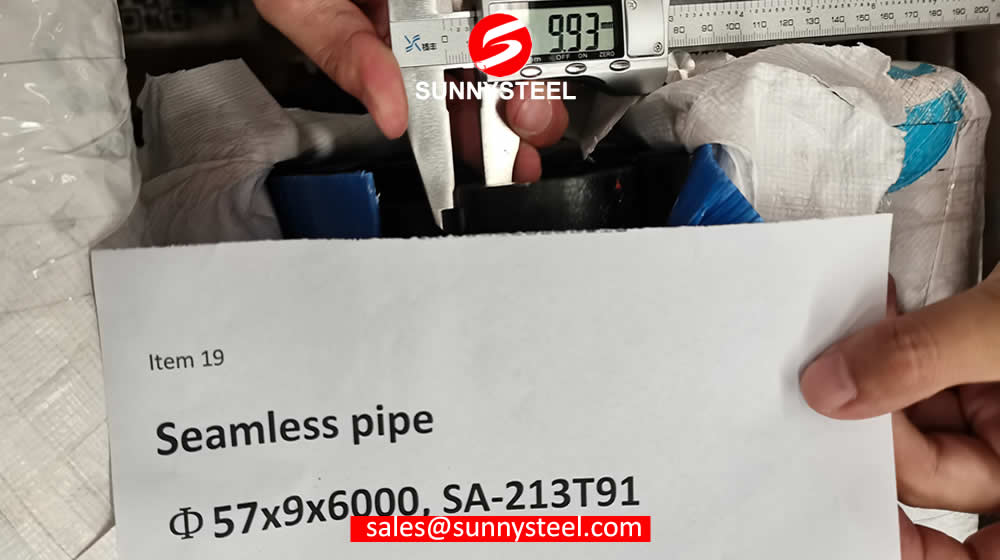

Wall thickness measurement
We are Offered at competitive prices in the market.
ASTM A213 T91 Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H.

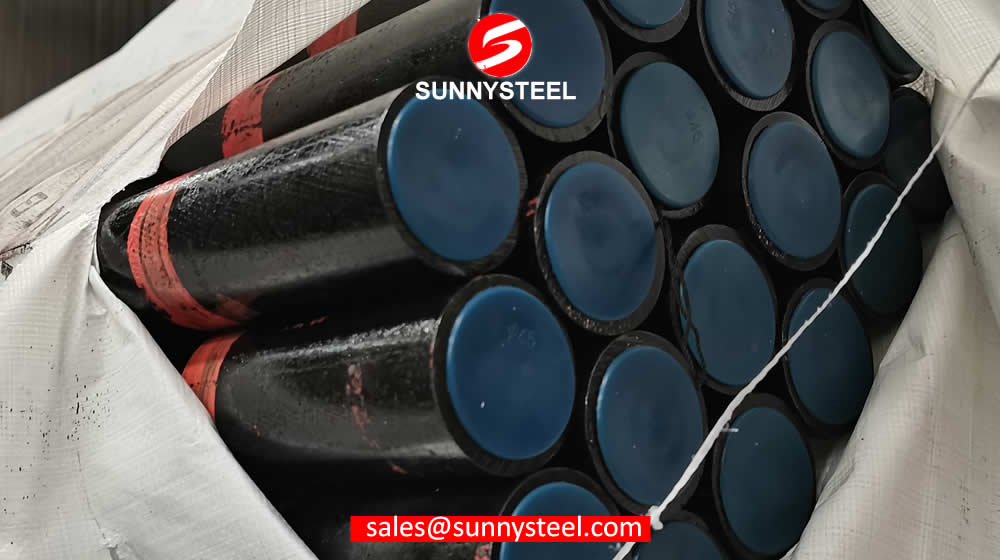

Well packing
These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. ASTM A213 T91 tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished. Heat treatment shall be done separately and in addition to heating for hot forming. The ferritic alloy and ferritic stainless steels shall be reheated. On the other hand, austenitic stainless steel tubes shall be furnished in the heat-treated condition. Alternatively, immediately after hot forming, while the temperature of the tubes is not less than the minimum solution temperature, tubes may be individually quenched in water or rapidly cooled by other means. Tension test, hardness test, flattening test, and flaring test shall be done to each tube. Also, each tube shall be subjected to the nondestructive electric test or hydrostatic test.

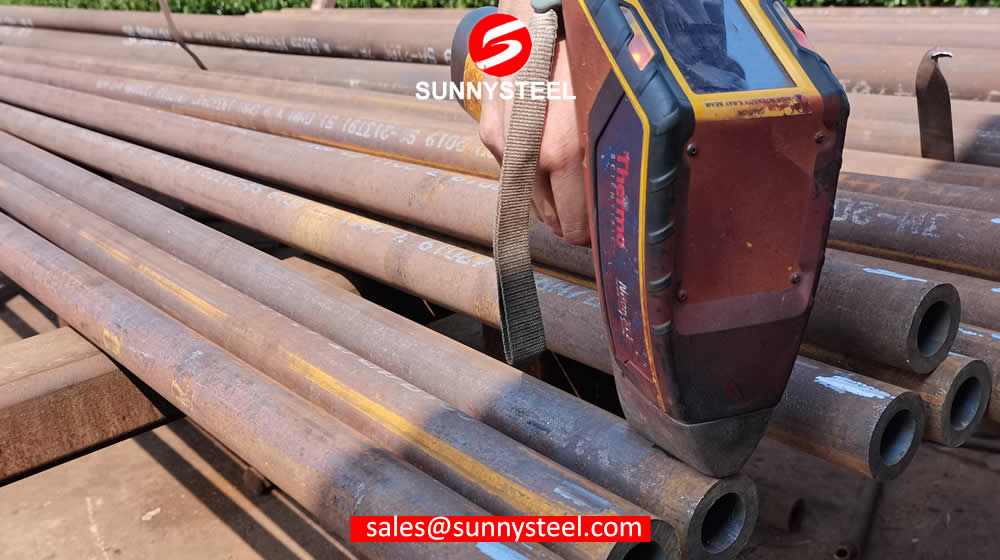

PMI test

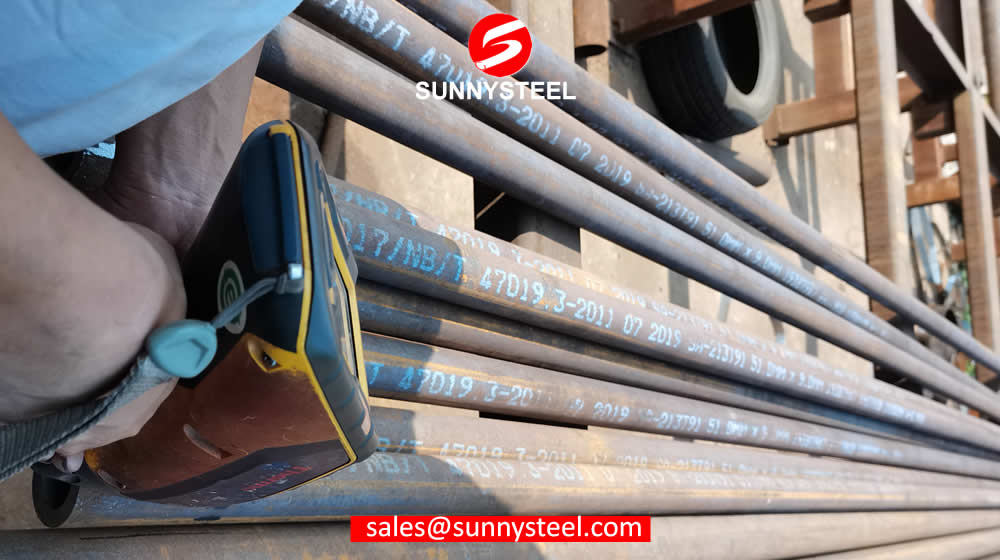

PMI test
This abstract is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.
Chemical Composition(%) for ASTM A213 T91 Low Alloy
| UNS Designation | K31545 |
| Carbon | 0.05–0.15 |
| Manganese | 0.30–0.60 |
| Phosphorus | 0.025 |
| Sulfur | 0.025 |
| Silicon | 0.50–1.00 |
| Nickel | … |
| Chromium | 2.65–3.35 |
| Molybdenum | 0.80–1.06 |
| Vanadium | … |
| Boron | … |
| Niobium | … |
| Nitrogen | … |
| Aluminum | … |
| Tungsten | … |
| Other Elements | … |
Mechanical properties for ASTM A213 T91 Low Alloy Steel
| Tensile strength(min) | 415Mpa |
| Yield strength(min) | 220Mpa |
| Elongation | 30% |
| Delivery condition | annealed |
ASTM A213 Standard Scope
1.1 This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T91, TP304, etc. These steels are listed in Tables 1 and 2.
1.2 Grades containing the letter, H, in their designation, have requirements different from those of similar grades not containing the letter, H. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements.
1.3 The tubing sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified in the order, average wall thickness. Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
TABLE 1 Chemical Composition Limits, %A, for Low Alloy SteelA Maximum, unless range or minimum is indicated. Where ellipses (…) appear in this table, there is no requirement, and analysis for the element need not be determined or reported.
B It is permissible to order T2 and T12 with a sulfur content of 0.045 max. See 16.3.
C Alternatively, in lieu of this ratio minimum, the material shall have a minimum hardness of 275 HV in the hardened condition, defined as after austenitizing and cooling to room temperature but prior to tempering. Hardness testing shall be performed at mid-thickness of the product. Hardness test frequency shall be two samples of product per heat treatment lot and the hardness testing results shall be reported on the material test report.
Referenced Documents (purchase separately)
Other ASTM Standards
Alloy Steel pipe contains substantial quantities of elements other than carbon such as nickel, chromium, silicon, manganese, tungsten, molybdenum, vanadium and limited amounts of other commonly accepted elements such as manganese, sulfur, silicon, and phosphorous.
