ANSI/ASME B16.25 Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding.
It includes requirements forwelding bevels, for external and internal shaping of heavy-wall components, and for preparation of internal ends (including dimensions and tolerances).
ANSI/ASME B16.25 Standard applies to any metallic materials for which a welding procedure can be satisfactorily qualified, but does not prescribe specific welding processes or procedures.
Unless otherwise specified by the purchaser, it does not apply towelding ends conforming to ASME B16.5, B16.9, or B16.47.
Requirements are valid for normal case, in special case you have to contact the technical department.

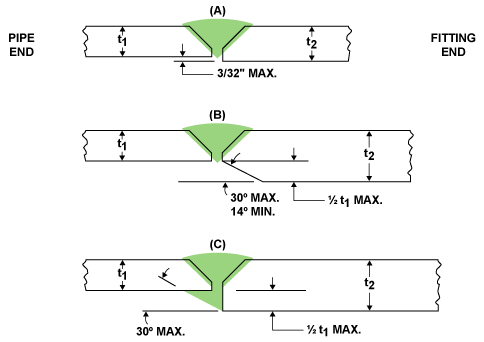

Below you will find a short description and definition of each type, completed with an detailed image.
